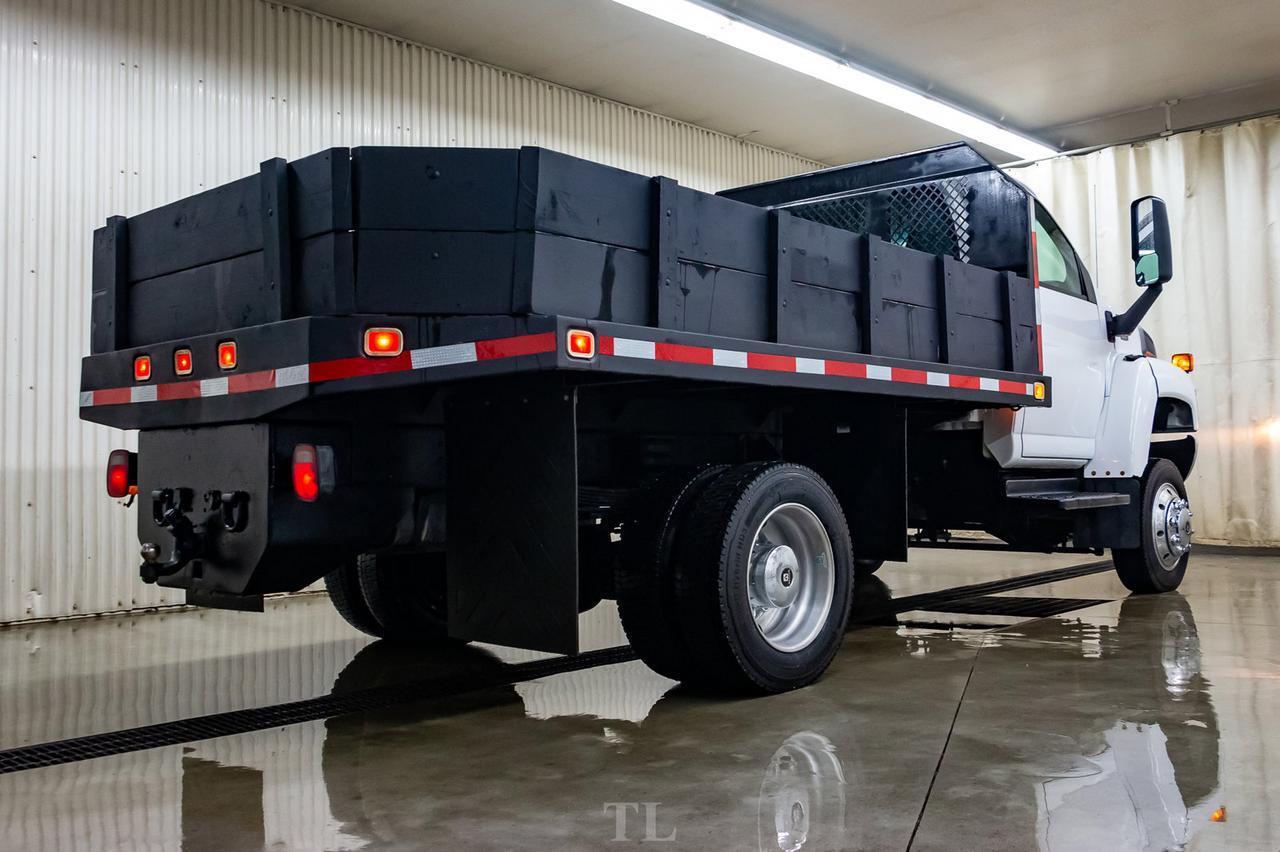

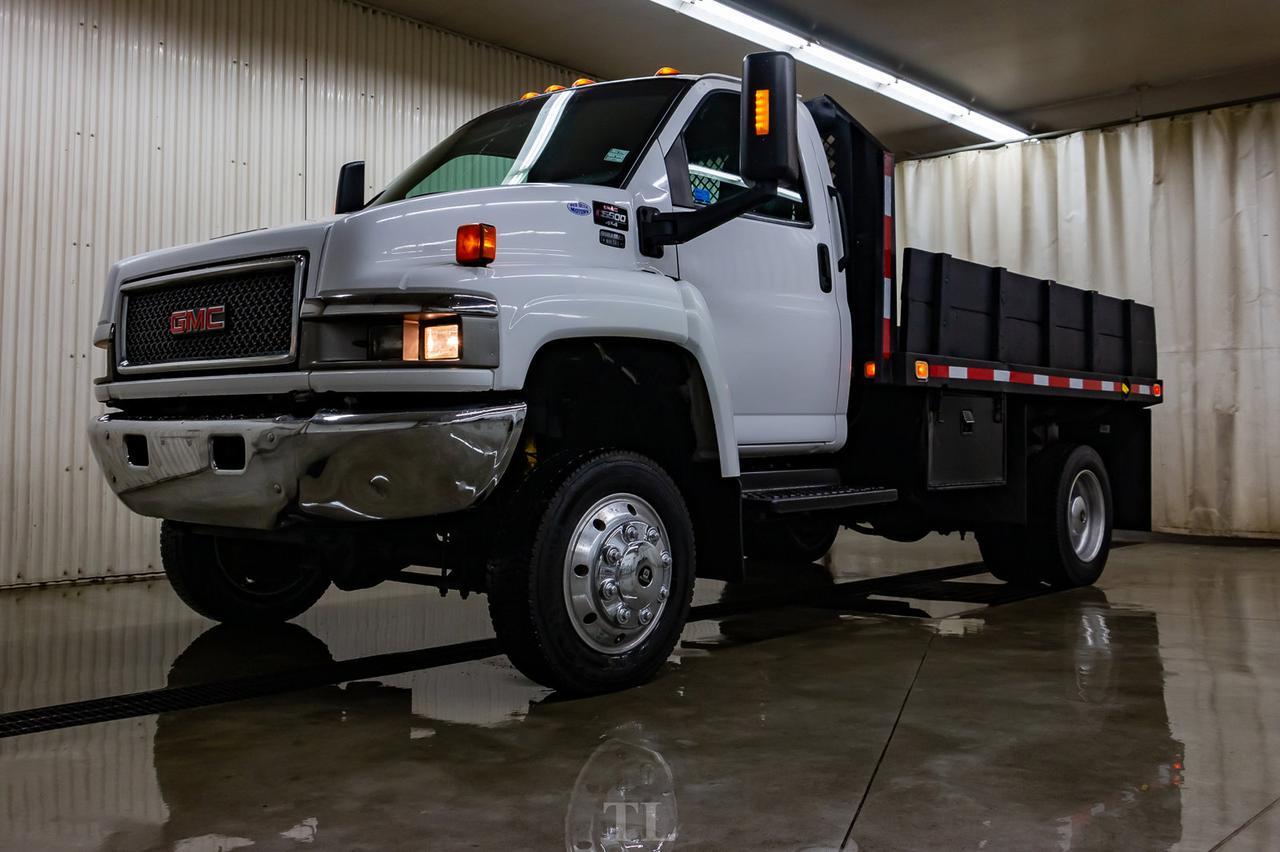

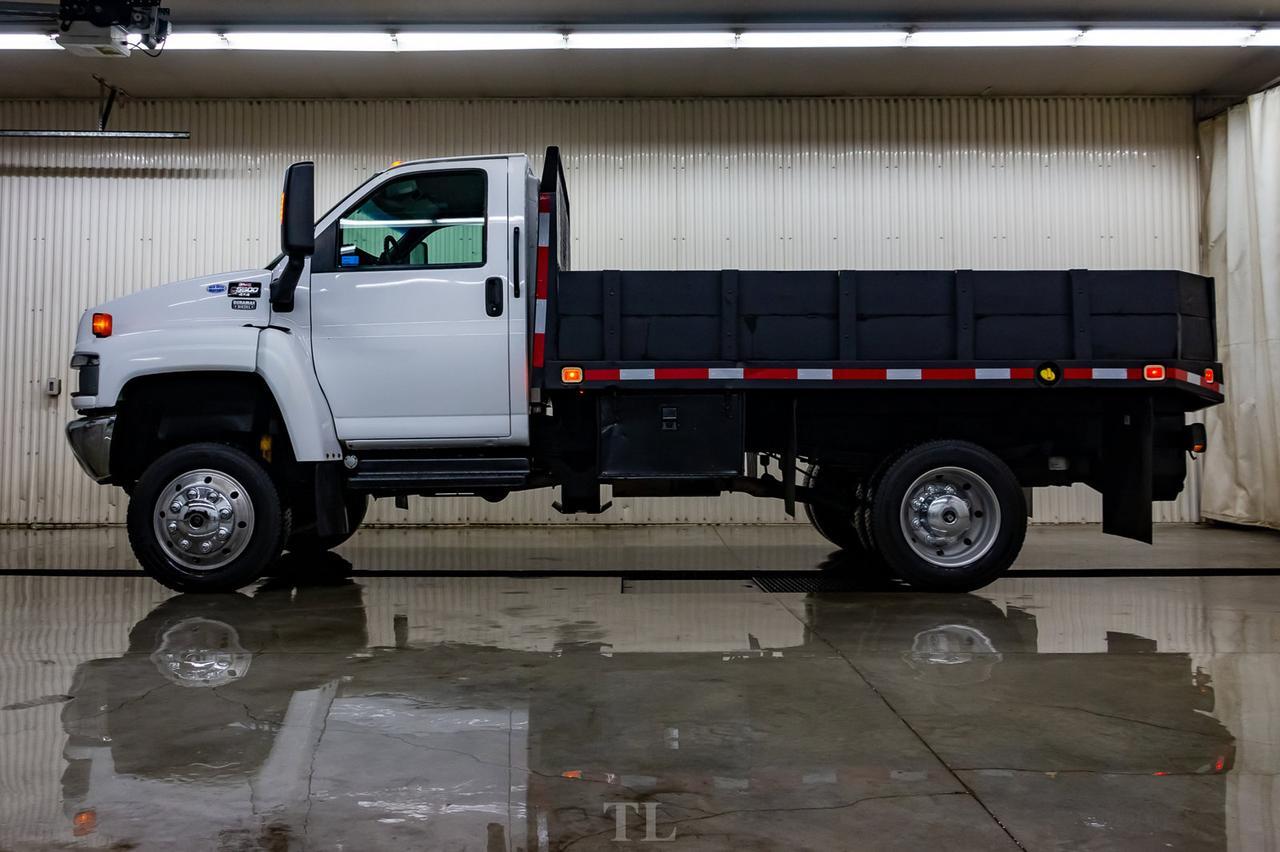

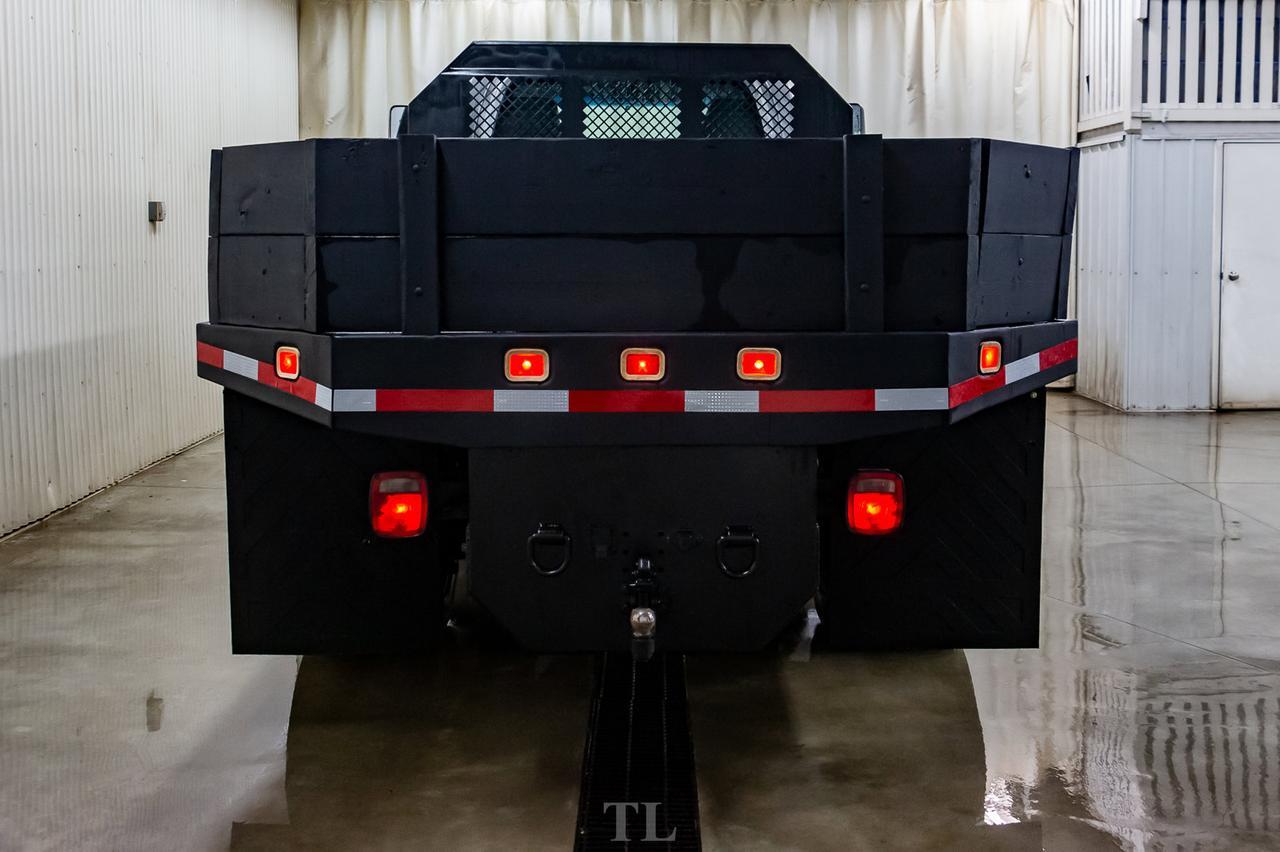

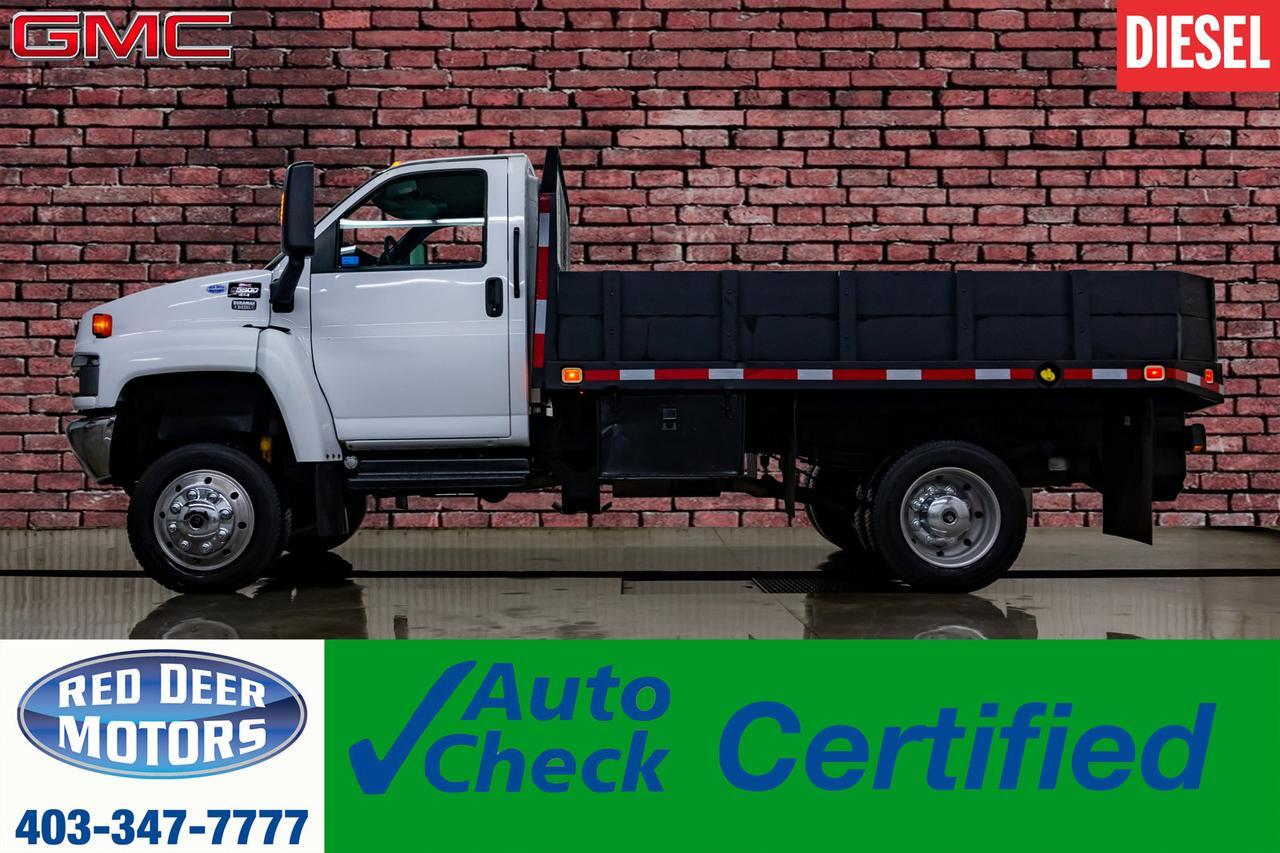

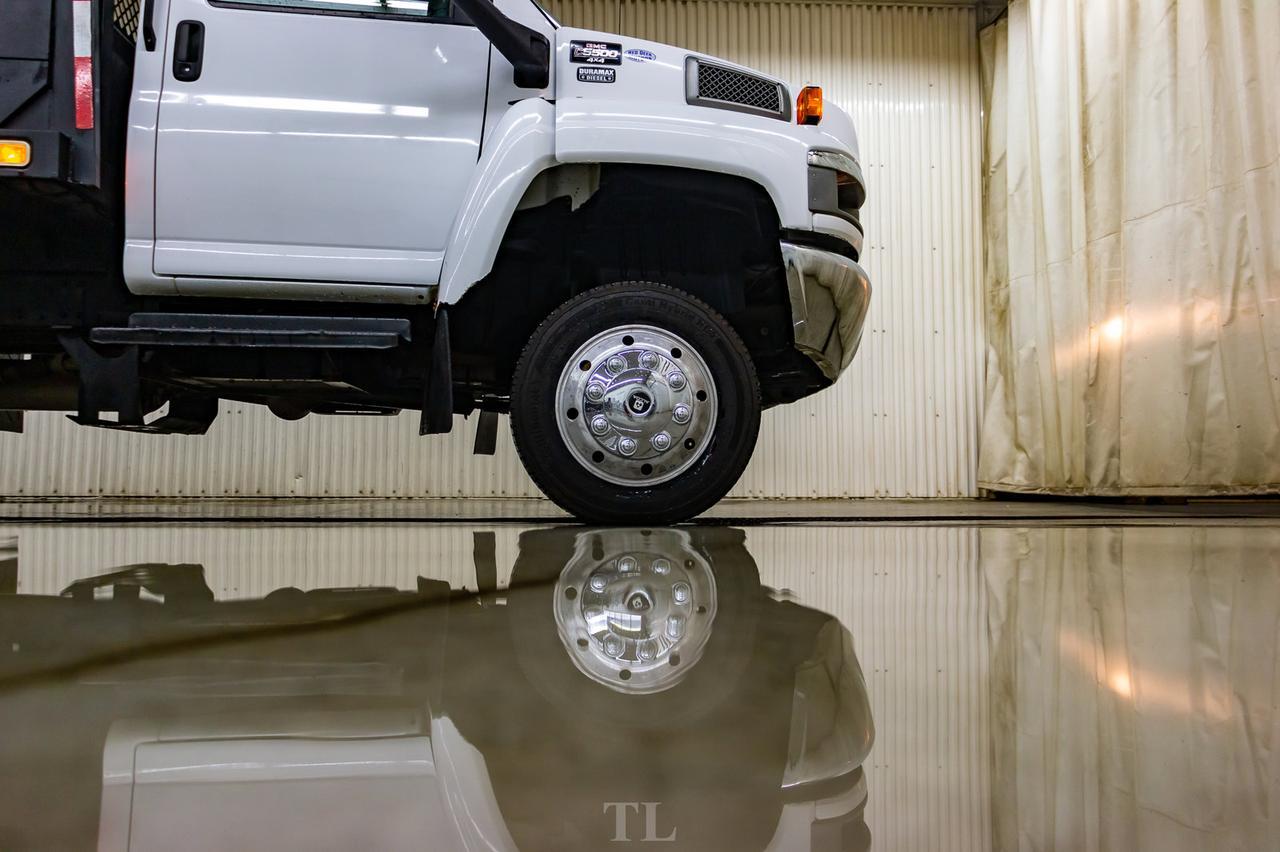

2005 GMC TC5500 4x4 Reg Cab Deck Diesel
# 14933,
111,505 km
VIN
1GDE5C3285F522283
Call For Price
At a glance
Red Deer, AB
111,505 km
Like what you see?
Our team of vehicle experts is standing by to help! Call us at (403) 347-7777 or use the tools below:
EQUIPMENT DETAIL
Exterior
- Bumper, front, steel, 96" (243.8 cm) wide - styled to minimized wall to wall turn diameter painted argent
- Daytime running lights
- Exterior roof drip moldings

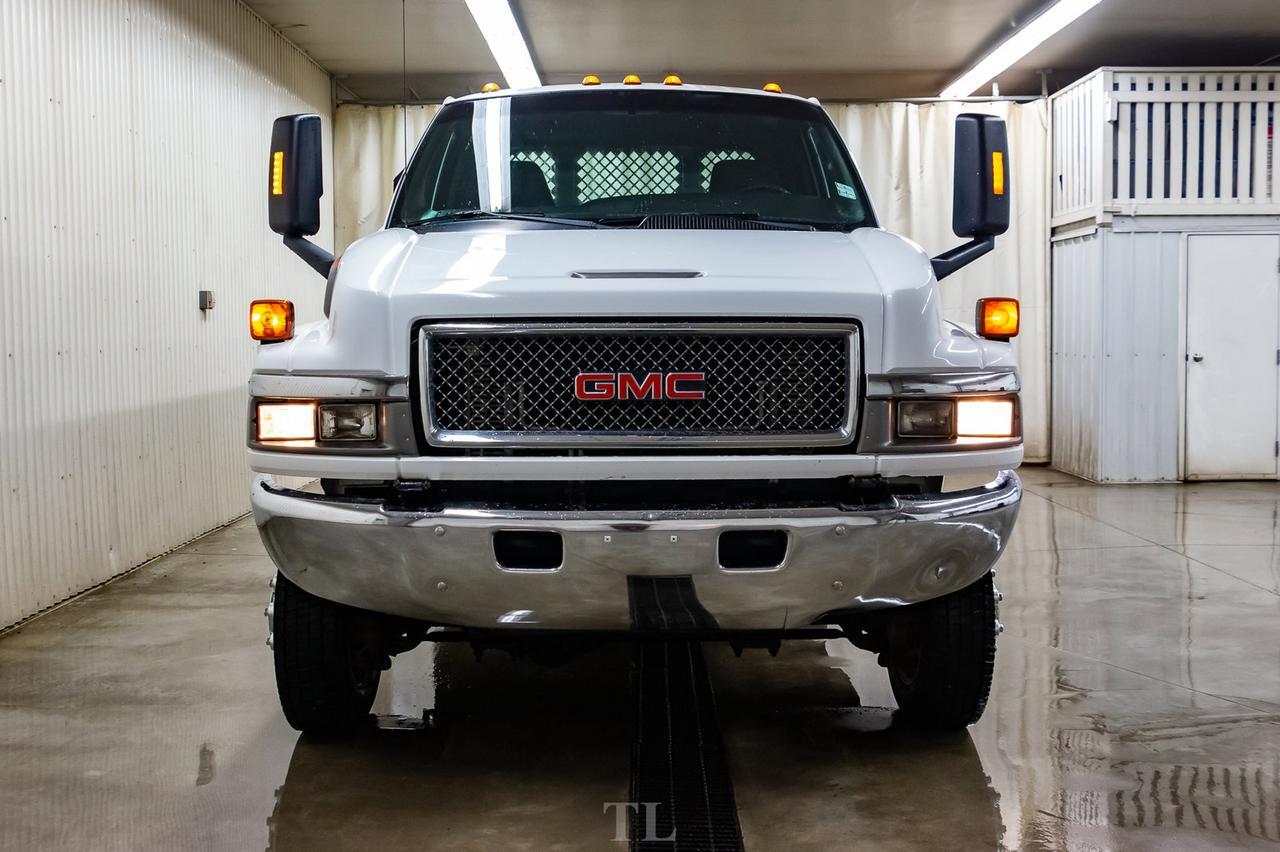

- Integral grille and fenders - The grille is the same color as hood with single halogen headlamps.
- Mirror, manual, 102" (259 cm) wide load, integral arm, integral convex mirror - black molded composite 12" x 7" (30.5 cm x 17.8 cm) with 6" x 7" (15.2 cm x 17.8 cm) convex section
- Paint scheme, solid, lower color
- Paint scheme, solid, upper color
- Provisions for mounting front license plate
- Steps under cab doors
- Windows, Solar-Ray tinted - all windows
- Windshield wipers, intermittent, with pulse washers

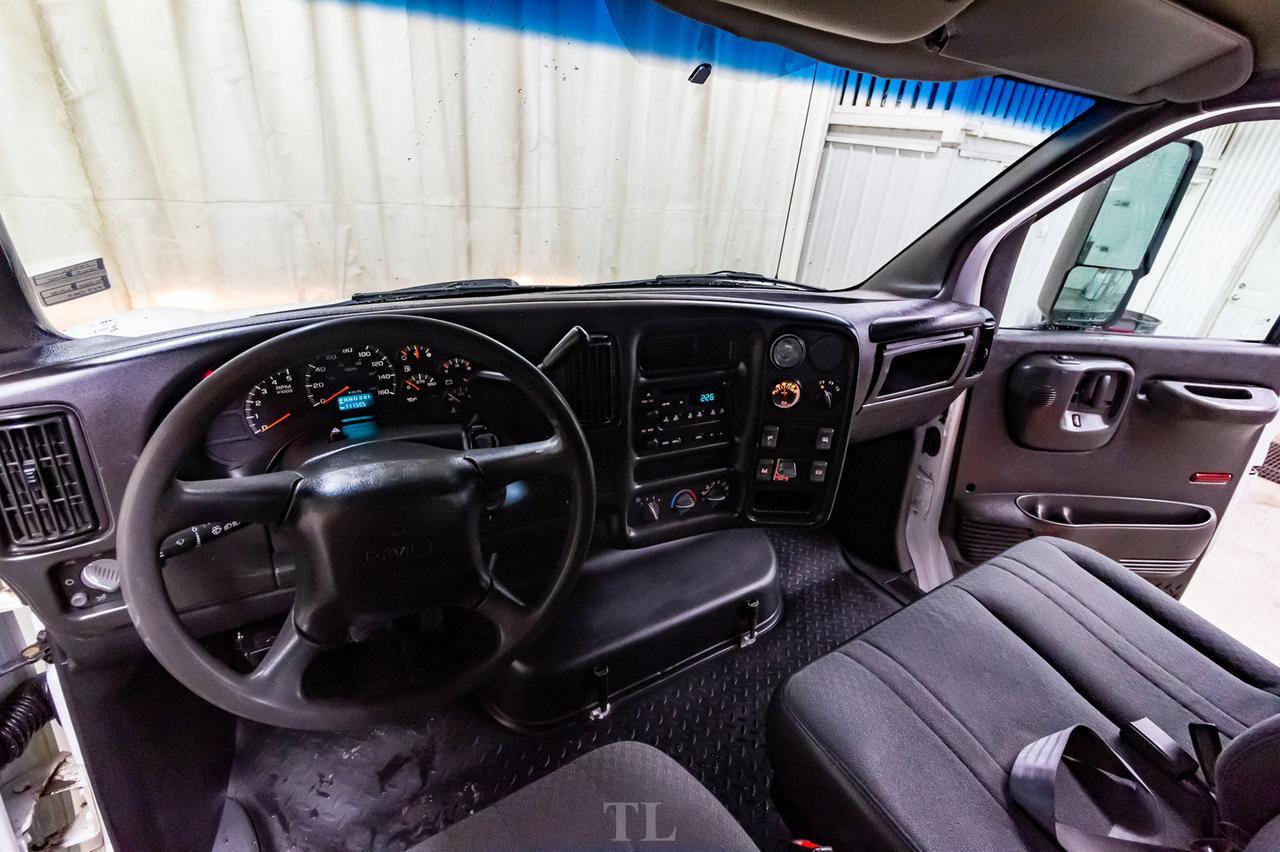

Interior
- Air conditioning not desired - this option should be ordered only when a customer does not require air conditioning
- Cloth headliner
- Coat hooks (2) located on cab back panel

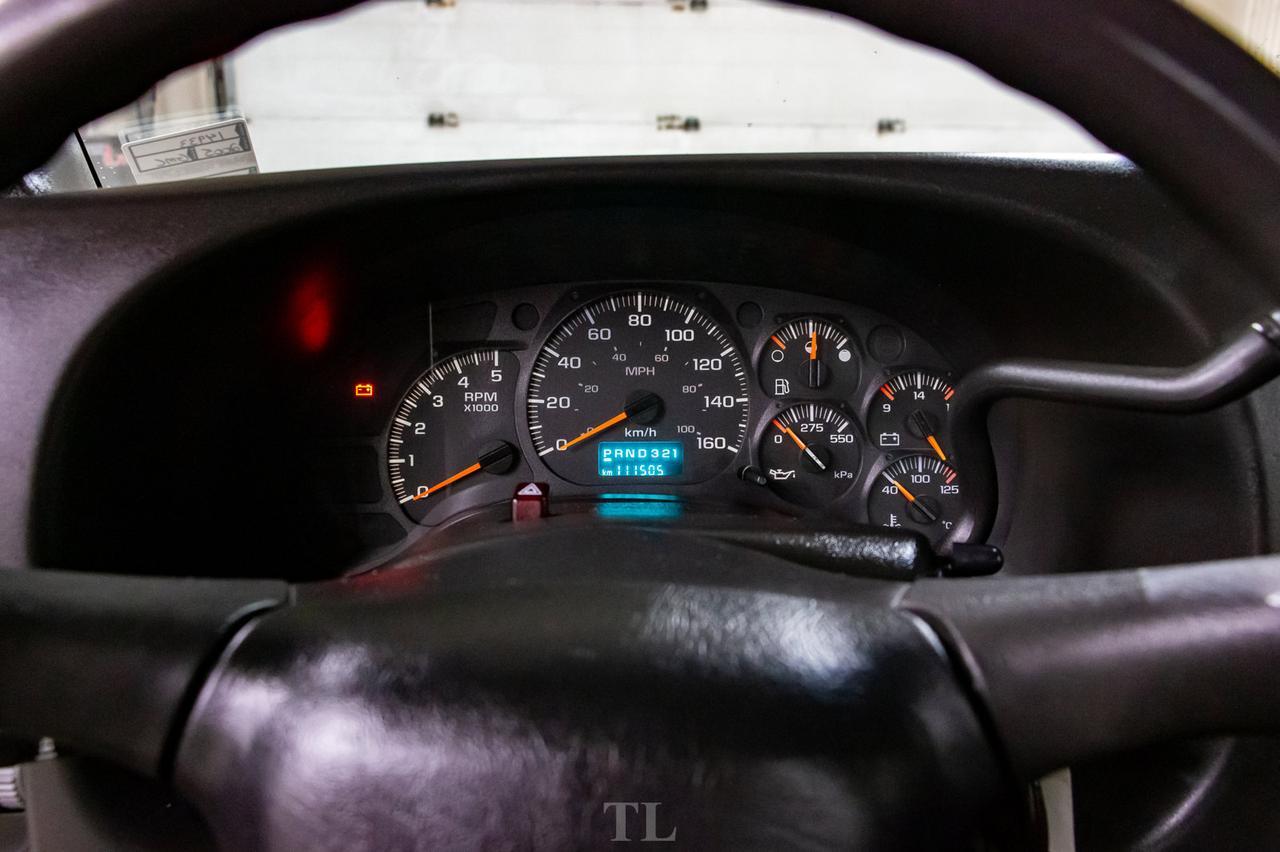

- Electronic engine hour meter
- Engine "Check Gauges" telltale light and buzzer, oil pressure gauge
- Gauges, low oil pressure and coolant level, high coolant and engine oil temperature
- Headlamp warning buzzer
- Interior trim, Very Dark Pewter (Requires 69U Very Dark Pewter Vinyl or 69C Very Dark Pewter Cloth)
- Molded vinyl floor covering
- Powerpoints - one in-cab power source (in addition to optional cigarette lighter) for electrical plug-in accessories

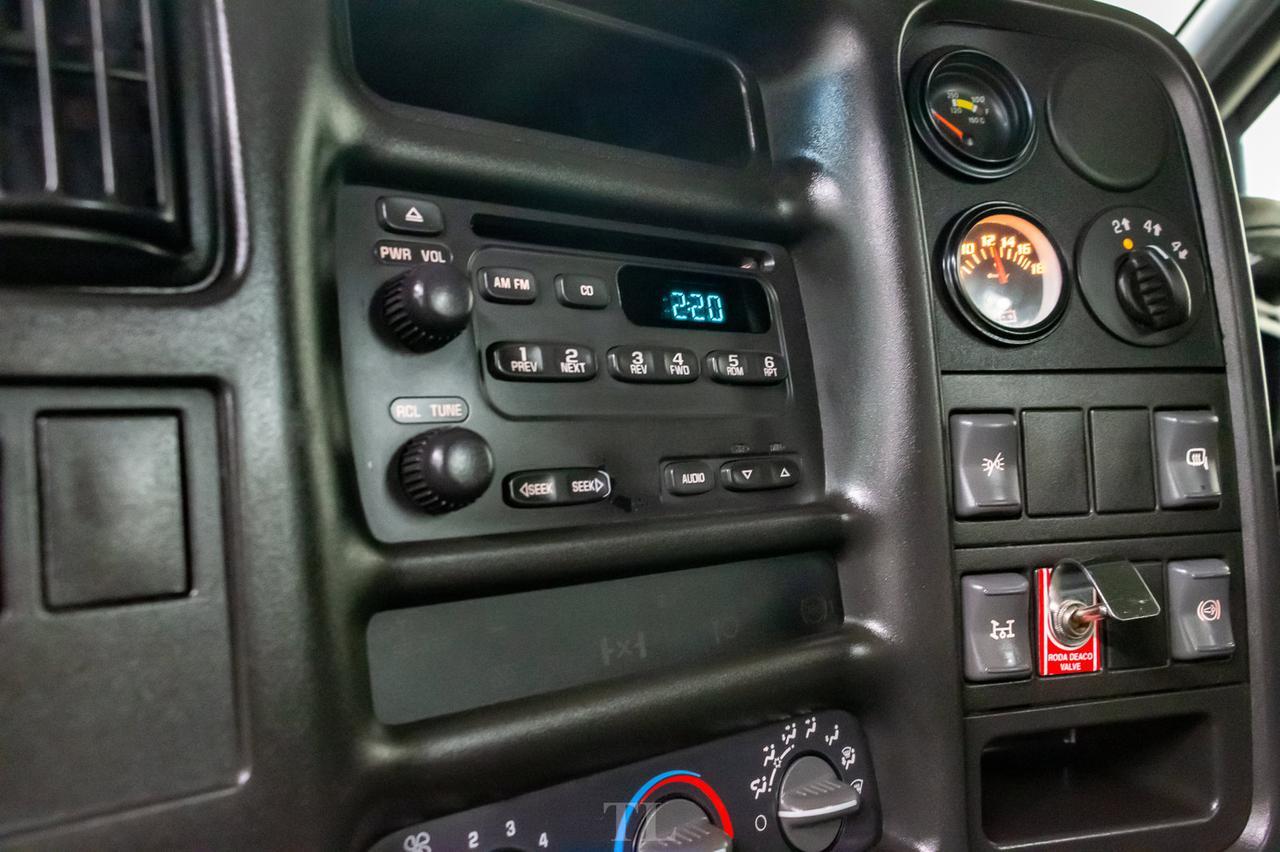

- Radio, Delco AM-FM stereo radio - with coaxial speakers in all door panels
- Seat belt warning indicator
- Seat trim, vinyl, Very Dark Pewter

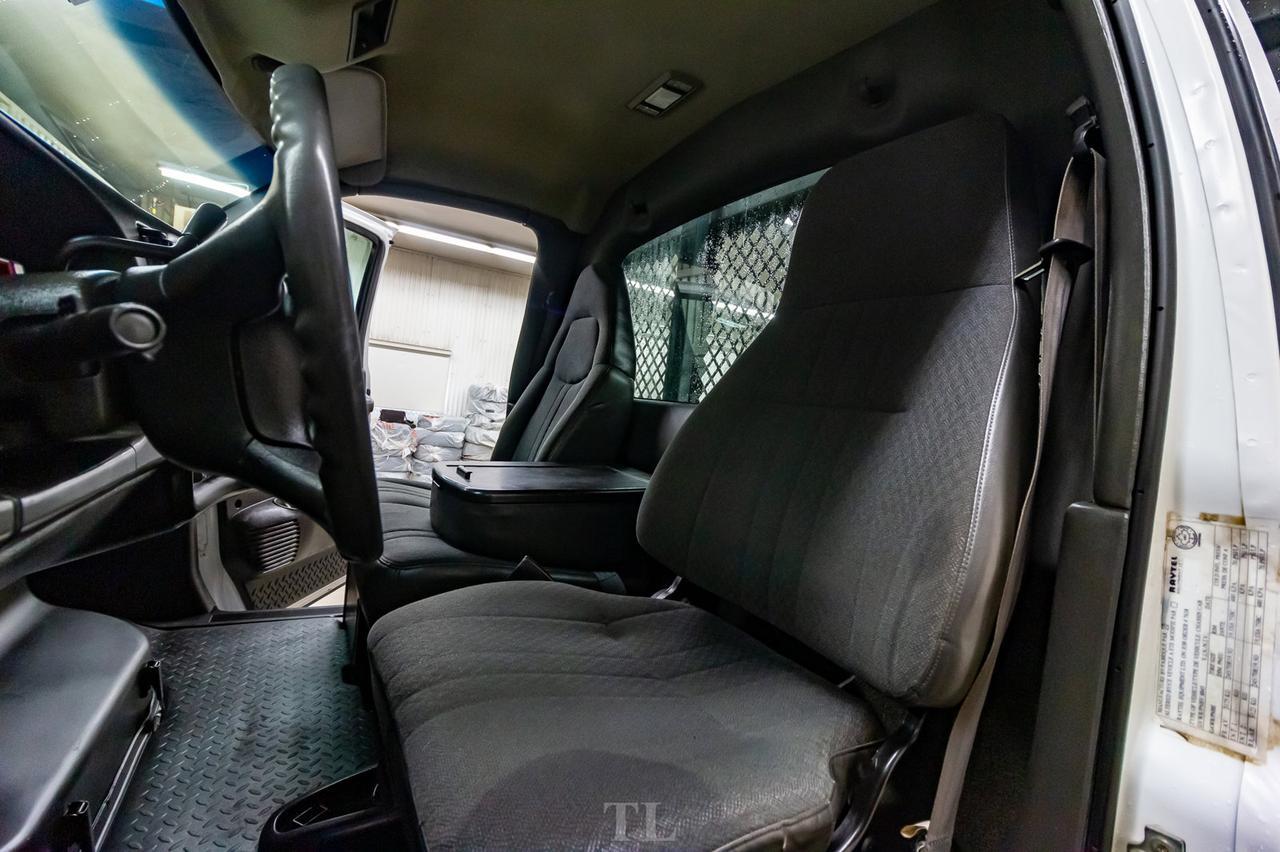

- Seat, driver, high-back bucket, fixed height, manual adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
- Seat, passenger, high-back bucket, fixed height, manual back angle adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out

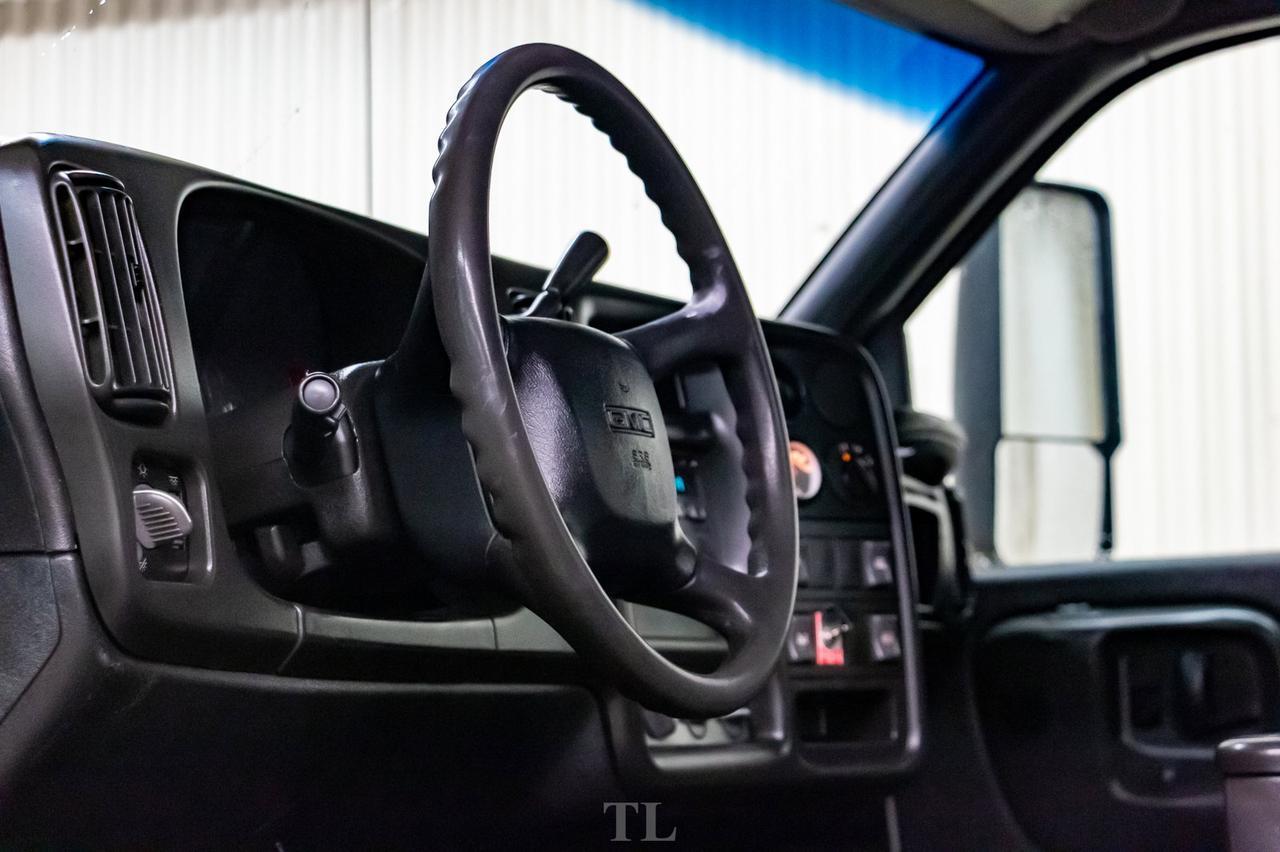

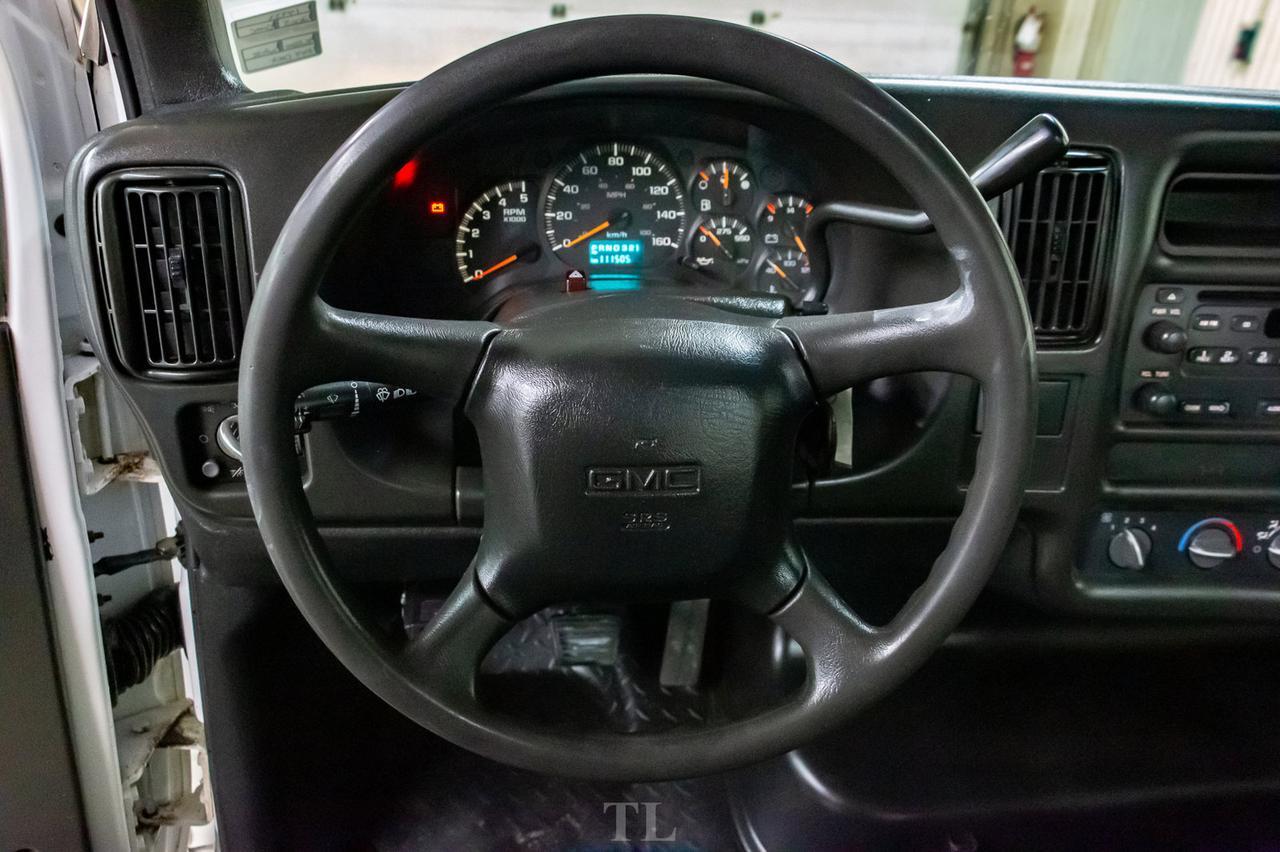

- Steering wheel, simulated leather
- Steering, power - ZF variable ratio power
- Sunshades, passenger side and driver side, vinyl-covered
- Tachometer with automatic and manual transmissions

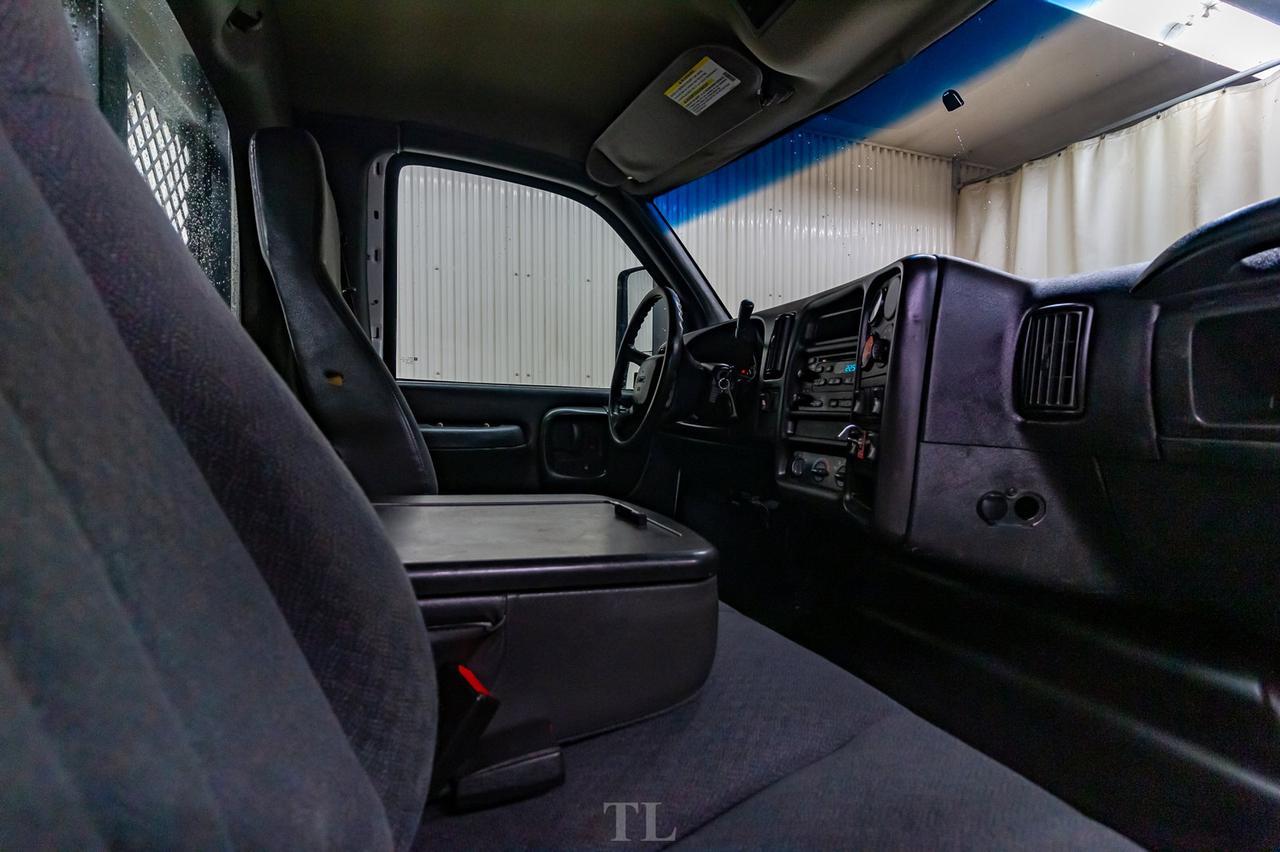

- Trim console - located next to driver's seat, and two cupholder
- Two sided single common key for doors and ignition
- Underhood bodybuilder connections accessory power supply - Provides 12V power supply from the battery with two separate 30 amp fused circuits
- Vinyl door trim panels - with storage pocket on front doors, beverage holders, and reflector on all doors
- Warning tone, key-in-ignition

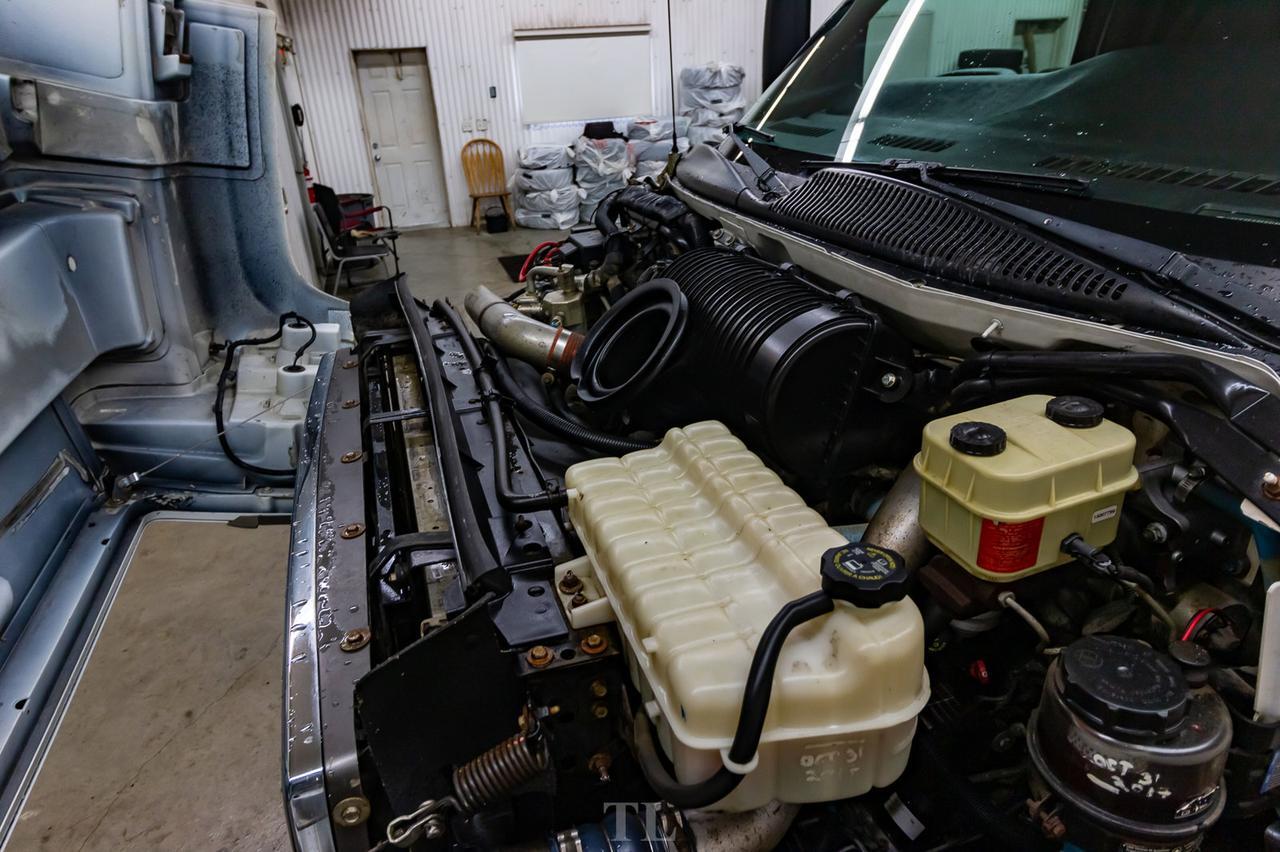

Mechanical
- Air cleaner, dry type
- Alternator, AD230 Delco Remy 105-amp maximum
- Battery, single 600 CCA Delphi Freedom 12V - 115-minute reserve capacity @ 27 degrees C, 600 CCA @ -18 degrees C grounded directly to starter, (Requires LRW gasoline engine) (N/A with ANQ snow plow prep package)
- Brakes, front, power, 4-wheel disc, 4 channel ABS 4-piston - (See Front Axle options more more details)
- Brakes, rear, power, 4-wheel disc, 4 channel ABS 2-piston - (See Rear Axle options for more detail)
- Cooling, anti-freeze protection temperature - -40 degrees F (-40 degrees C)
- Engine, Vortec 8100MD gasoline V8, 325 hp (239 kw) @ 4000 rpm and 450 lb-ft torque (610 N-m) @ 2,800 rpm. - Maximum engine speed 5000 rpm
- Exhaust, single horizontal - driver side mounted inside frame rail, stainless-steel with gasoline engines, aluminized steel with diesel engines
- Four-wheel drive
- Frame, 6mm - 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 610,400 Section Modulus 7.63
- Front axle, 8000 lbs. (3628 kg) capacity - solid drive axle. Up to 45 degree turn angle (Includes 4 piston brake apply calipers) Manual Locking Hubs
- Front shock absorber, diameter 1.375" (35mm)
- Front stabilizer bar, 2" x 2" square tube (5 cm x 5 cm)
- Front suspension, tapered leaf, 8000 lbs. (3628 kg) capacity (includes stabilizer) (Requires G38 8000 lb front axle)
- Front tire manufacturer code, Goodyear (Requires S4A Goodyear)
- Front tire size, 245/70R19.5G - 9090 lbs. (4123 kg) capacity, (Requires KYW 75 mph (120 kph) road speed governor)
- Front tread, highway traction
- Front wheels, 19.5" x 6.75" (49.5 cm x 17.1 cm), steel disc - 8-hole. 10,000 lbs. (4536 kg) capacity, (Requires Q83 steel rear wheel)
- Fuel sender assembly. Robust fuel pump
- Fuel tank, single, 40-gallon (151L) fuel capacity - gas or diesel, located behind rear axle with fuel fill neck through frame rail, DRIVER SIDE FILL NECK ONLY. NO AUXILIARY FUEL PORTS MINIMUM OVERHANG = 60" (5 FEET)
- GVWR, 19,500 lbs. (8845 kg) capacity
- Option PTO not required - This option should only be ordered when a customer specifically does not require an electric hand throttle for use with power-take-off provisions. (Note: may delete transmission PTO gear.)
- Parking brake, rear in-wheel park brake - hand lever operated
- Rear axle ratio, 5.13:1, (Requires GL8 rear axle)
- Rear axle, single speed, 13,500 lbs. (6123 kg) capacity - full floating, includes 2-piston brake applied calipers
- Rear limited slip differential
- Rear shock absorber, 1.375" (35mm)
- Rear suspension, multi-leaf, 15,000 lbs. (6804 kg) capacity
- Rear tire manufacturer code, Goodyear (Requires R4A Goodyear)
- Rear tire size, 245/70R19.5G - 17,500 lbs. (7938 kg) capacity, (Requires KYW 75 mph (120 kph) road speed governor)
- Rear tread, highway traction

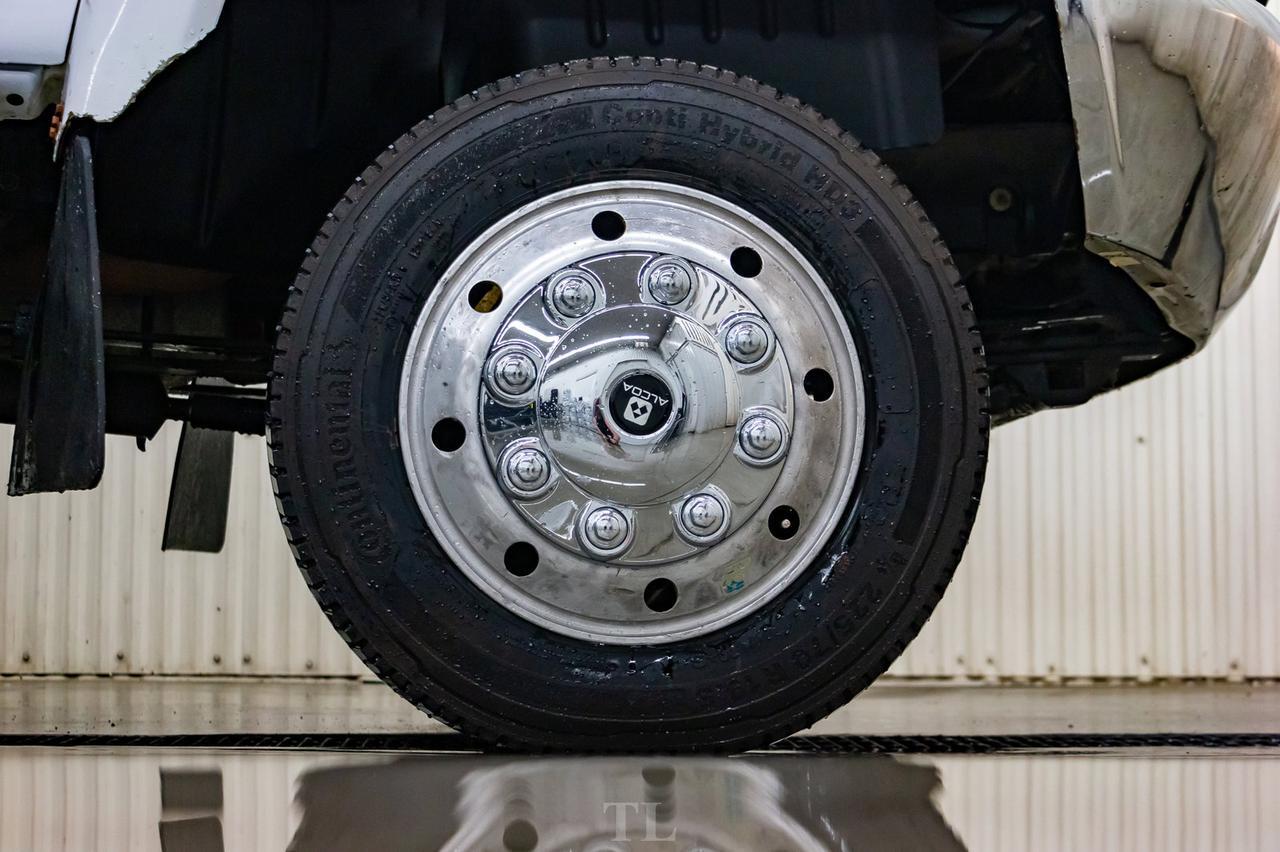

- Rear wheels, 19.5" x 6.75" (49.5 cm x 17.1 cm), steel disc - 8-hole, 20,000 lbs. (9072 kg) capacity
- Road Speed Governor, controlled by the speed rating of the tires ordered which will be less than or equal to 75 mph (120 kph) road speed governor (Required with XTY and YTY front and rear tires and C4I or C6V GVWRs).
- Road Speed Governor, controlled by the speed rating of the tires ordered. - which will be less than or equal to 85 mph (137 kph)
- Tethered fuel cap

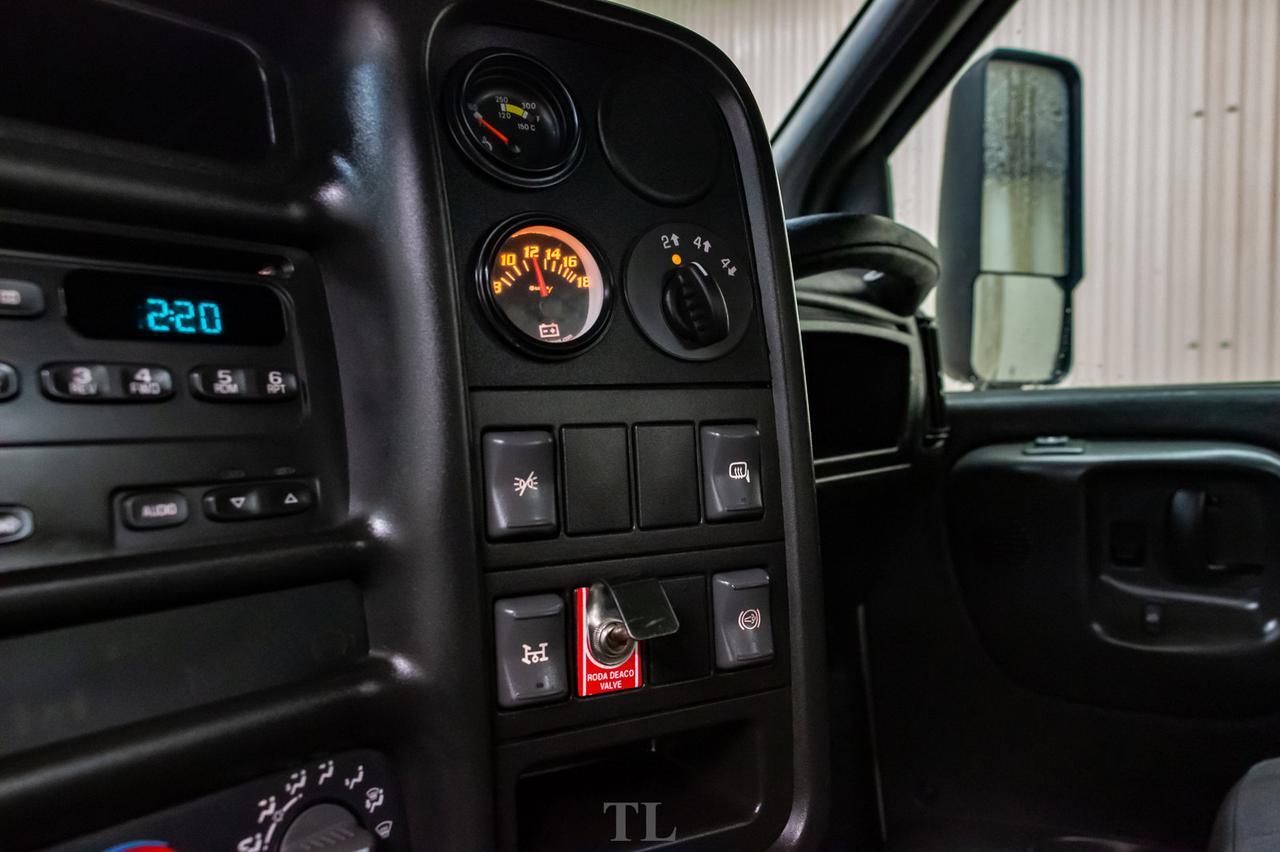

- Transfer case, New Venture Gear - model NV273 two-speed, electrically actuated, IP mounted switch. (Includes shield)
- Transmission, Allison 1000 Series automatic - with 0.71 overdrive. Torque Rating: 520 lb-ft (705 N-m). Column shift. Base model does not include power take-off gear, to include PTO gear please order with RPO "PTO". Includes transmission-oil cooler located inside radiator and an air-to-oil auxiliary With Option PTX, the truck will be equipped with the Allison 1000HS Highway Series transmission. When ordered with option PTO, the truck will be equipped with the Allison 1000RDS Rugged Duty Series transmission.
- Wheelbase, 152" (386.1 cm) - with 84" (213.4 cm) CA and 146" (370.8 cm) CE. Includes a 6mm 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 610,400 Section Modulus 7.63
Safety
- 4-wheel disc, 4-channel ABS
- Air bags, Supplemental Inflatable Restraints not included. This vehicle does not include any air bags
- Daytime running lights
SPECS
Stock:
14933
VIN:
1GDE5C3285F522283
Dealer:
Red Deer Motors
Type:
Used
Year:
2005
Make:
GMC
Model:
TC5500
Dealer Certified:
No
Date in Stock:
12/13/2025
Trim:
4x4 Reg Cab Deck Diesel
Model Number:
TC5C044
Body:
Commercial
Body Style:
Commercial
Style:
Commercial
Transmission:
Automatic
Transmission Description:
5-Speed
Transmission Speed:
5
Doors:
2
Cylinders:
8
Displacement:
6.6L
Block Type:
V
Aspiration Type:
Turbocharged
Description:

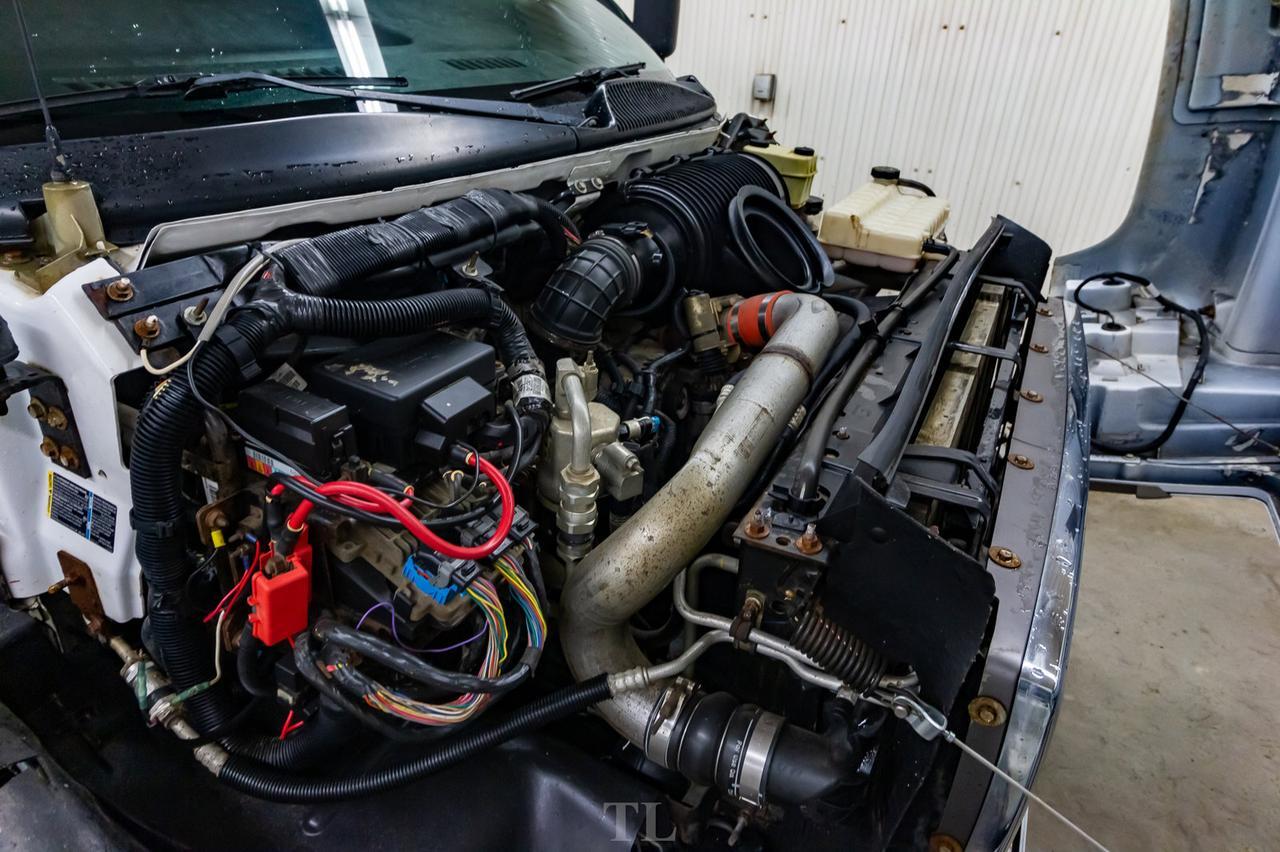

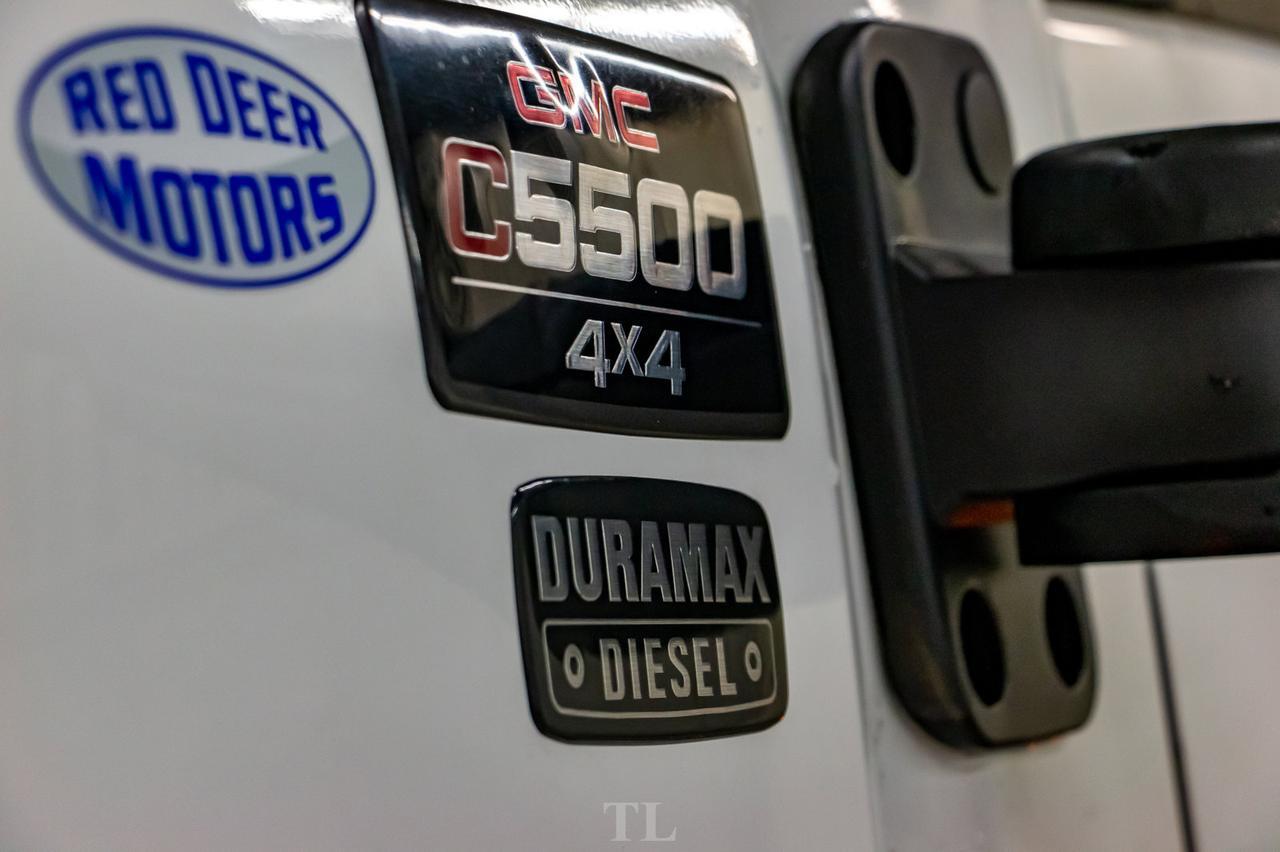

6.6L Duramax Diesel
Drivetrain:
4WD
Fuel Type:
Diesel
Exterior Color:
White
Interior Color:
Gray
Portions of the data provided are © 2025 Autodata, Inc. dba ChromeData
